Product Category

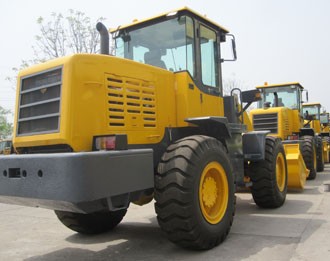

lion 30 wheel loader
Made in china front end loader.china 3 ton wheel loader suppliers,china wheel loader factory Min order:1 set.delivery time:15 days. lion wheel loader 3000kg design and consult.
Other name:china loader.wheel loader. front end loader,compact loader,3000 small loader.
Product description
| Specification | overall weight(kg) | 9500 |
| L×W×H（mm） | 7050×2430×3120 | |
| rated bucket capacity(m3) | 1.7 | |
| Rated load(kg) | 3000 | |
| Maximum dump height (mm) | 3250/3500 | |
| Bucket indicator | Yes | |
| Max. breakout force(KN) | 138 | |
| Engine | Model | Cummins 6BT5.9-C125/DEUTZ |
| Type | In line, direct injection, four-stroke, liquid cooled | |
| Rated power（kw） | 92kw(125hp) | |
| Rated speed(r/min) | 2400 | |
| Transmission system | Model of torque converter | YJ320B |
| Type | Single stage,3 elements | |
| Gearbox type | Axial full power shift transmission | |
| Gear shift | 4 gears ahead,2 gear astern | |
| Hydraulic system | Distribution of work valve | DF25 |
| Working pump | CBGj2100,CBGq2100 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | lift and right 36.5±1° | |
| Min turning radius(mm) | 5862 | |
| Brake system | Brake type | Air-break brake |
| Tires | Standard tires | 17.5-25 |
