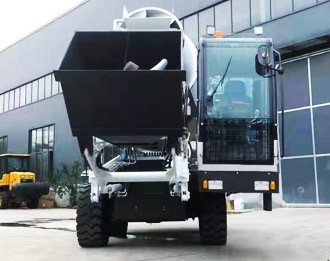

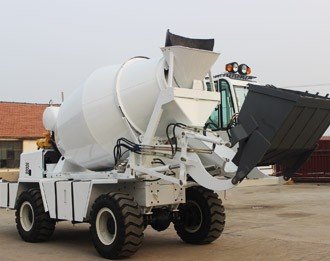

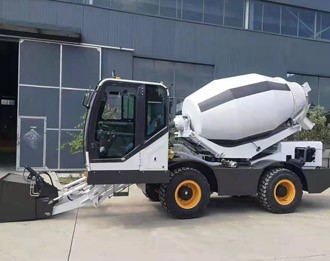

Lion 400 selfloading concrete mixer
Made in china lion diesel concrete mixer, lion loader mixer suppliers,mobile self loading concrete mixer.Min order:1 set.delivery time:15 days. Lion mobile concrete mixer design and consult.Other name: china lion wheel concrete mixer,mobile lion concrete mixer,self loader mixer.diesel mobile mixer.
Product description
|
Diesel engine |
Type：YN48GBZ Form：4-cylinder inline, direct injection, water-cooled, four-stroke, supercharged Piston Total Displacement：4.8 Nm/rpm: 445-455/1400-1600 Low idiling speed: 800-850 Min. Fuel Consumption: ≤225 Lubrication: Combination of pressure and splash |
|
Axles/wheels |
Adopt Liufeng 10T AxleFront axle: wheel-side axle, front steering. Rear axle: Wheel side axle. Wheelbase: 2.35M. Tyre: 1670-20 rail tyre |
| Electric system |
24V storage battery: 2*12V--100AH street lighting system, working lighting system. |
| Transmission system | Adopt 280 split torque converter gearbox, with high and low speed, full hydraulic drive |
| Steering system | Integrated frame, Front wheel steering |
| Brake system | Hub driving brake, emergency brake. Operates on four wheels |
| Water Supply Sysytem | Self-priming hydraulically driven water pump with zero water flow indicator |
| speed | Low speed：0-7km/h.High speed:0-45km/h |
| Rotary drum | Discharge mouth height 2.21-1.6meters(Adjustable).Level turn 270° |
| Mixing/Unl oading |
Double-cone drum with double-spiral mixing screws and convex bottom. Drum rotation speed：Concrete produced as:4.0m³ |
| Loader | Auto weighting function,Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders.Automatic unloading hatch drven by a mechanical lever. |
| Oil tank/water tank | 2*250L water tank.Diesel tank:125 litres.Hydraulic tank:125 litres. |
| Length/Width/Height | 7500*1135*3450 |
| CABIN | Luxury cab,Humanized seat.Built-in pilot operating system.Closed cad has heating/cooling system (optional). |
