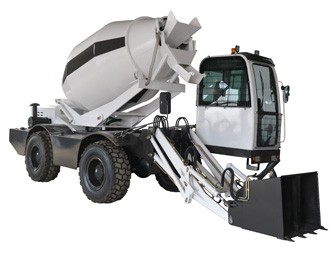

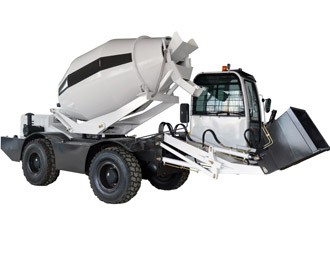

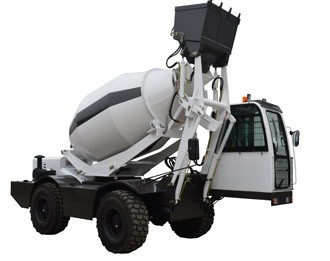

Lion 300 selfloading concrete mixer

Made in china diesel concrete mixer, china loader mixer suppliers,mobile self loading concrete mixer. Min order:1 set.delivery time:15 days. mobile concrete mixer design and consult Other name: china wheel concrete mixer,mobile concrete mixer,self loader mixer.diesel mobile mixer.

Product description

Diesel engine	Form：4-cylinder inline, direct injection, water-cooled, four-stroke, supercharged Piston Total Displacement：3.8 Nm/rpm: 260-332/1800-2200 Min. Fuel Consumption: ≤225 Lubrication: Combination of pressure and splash
Axles/wheels	Adopt Liufeng 8T Axle Front axle: wheel-side axle, equipped with planetary reduction gears, flanged gearbox Rear axle: Wheel steering axle. Wheelbase: 2.14M. Tyre: 23.5/70-16 rail tyre
Electric system	24V storage battery: 2*12V--100AH street lighting system, working lighting system
Transmission system	Adopt 280 split torque converter gearbox, with high and low speed, full hydraulic drive
Steering system	Integrated frame, rear wheel steering
Brake system	Hub driving brake, emergency brake. Operates on four wheels
Water Supply Sysytem	Self-priming hydraulically driven water pump with zero water flow indicator
speed	Low speed：0-7km/h.High speed:0-45km/h
Rotary drum	Discharge mouth height 1.66 meters(Adjustable).Level turn 270°
Mixing/Unloading	Double-cone drum with double-spiral mixing screws and convex bottom. Drum rotation speed：18 rpm.Concrete produced as:3.0m³
Loader	Auto weighting function,Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders.Automatic unloading hatch drven by a mechanical lever.
Oil tank/water tank	2*250L water tank.Diesel tank:125 litres.Hydraulic tank:125 litres.
CABIN	Luxury cab,Humanized seat.Built-in pilot operating system.Closed cad has heating/cooling system (optional).
