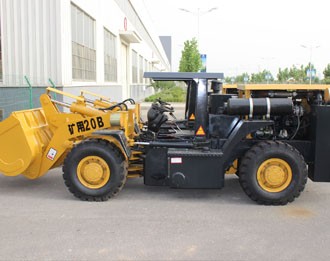

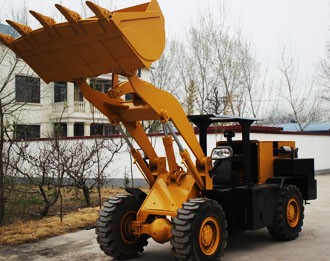

Lion underground loader

Made in china underground loader.china wheel loader suppliers,china mucking loader factory Min order:1 set.delivery time:15 days. underground loader design and consult. Other name:china mucking loader.underground hydraulic mining multifunction Cinder machine,Cinder machine.mining engineering machine,mine gravel soil material acquisition and transmission loading construction.

Product description

Performance	1	rated loading	2800kg
	2	overall weight	7500kg
	3	rated bucket capacity	1.3m3
	4	maximum tractive force	≥54KN
	5	maximum breakout force	≥45.4KN
	6	maximum grade ability	30℃
	7	maximum dump height	2800mm
	8	maximum dump reach	752mm
	9	overall dimension (L×W×H)	5833×2120×2712mm
	10	minimum turning radius	5251mm
Engine	11	model	Yunnei 83KW
	12	type	Vertical, in-line, water cooled, 4-stroke diesel engine
	13	No. of cylinder-bore/stroke	4—102×120mm
	14	rated power	60kw-2200r/min
	15	maximum torque	270N.m
	16	min fuel-consume ratio	≤243g/kw.h
Transmission system	17	torque converter	YJ—280A
	18	gearbox mode	Countershaft power-shift
	19	gear shift	2 forward shift 2 reverse shift
	20	maximum speed	24km/h
Drive axles	21	main reducing mode	Circular Arc Bevel gear, single stage
	22	decelerating mode	Single stage planetary type
	23	wheel base (mm)	2400mm
	24	wheel tread	1640mm
	25	ground clearance	310mm
Hydraulic system	26	system working pressure	16MPa
	27	boom lifting time	4.8s±0.2s
	28	total time	9.2s±0.5s
	29	fuel tank capacity	65L
	30	function of leveling automatically	yes
Brake system	31	service brake	air assist disc brake on 4 wheels
Brake system	32	parking brake	flexible shaft operated external drum
Tyre	33	type specification	16/70—20
	34	front tyre pressure	0.22Mpa
	35	rear tyre pressure	0.18Mpa
