Product Category

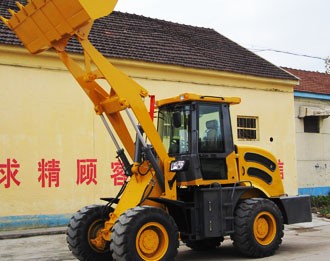

Lion 20 wheel loader
Made in china loader.china lion wheel loader suppliers,china loader factory Min order:1 set.delivery time:15 days. lion loader design and consult.Other name:china wheel loader.wheel loader.20 front end loader,compact loader,2000 backhoe loader.
Product description
| Performance | 1 | rated loading | 2000kg |
| 2 | overall weight | 5200kg | |
| 3 | rated bucket capacity | 1m3 | |
| 4 | maximum tractive force | ≥54KN | |
| 5 | maximum breakout force | ≥45.4KN | |
| 6 | maximum grade ability | 30℃ | |
| 7 | maximum dump height | 2800mm | |
| 8 | maximum dump reach | 752mm | |
| 9 | overall dimension (L×W×H) | 5633×2120×2712mm | |
| 10 | minimum turning radius | 5251mm | |
| Engine | 11 | model | Yunnei 76KW |
| 12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
| 13 | No. of cylinder-bore/stroke | 4—102×120mm | |
| 14 | rated power | 60kw-2200r/min | |
| 15 | maximum torque | 270N.m | |
| 16 | min fuel-consume ratio | ≤243g/kw.h | |
| Transmission system | 17 | torque converter | YJ—280A |
| 18 | gearbox mode | Countershaft power-shift | |
| 19 | gear shift | 2 forward shift 2 reverse shift | |
| 20 | maximum speed | 24km/h | |
| Drive axles | 21 | main reducing mode | Circular Arc Bevel gear, single stage |
| 22 | decelerating mode | Single stage planetary type | |
| 23 | wheel base (mm) | 2400mm | |
| 24 | wheel tread | 1640mm | |
| 25 | ground clearance | 310mm | |
| Hydraulic system | 26 | system working pressure | 16MPa |
| 27 | boom lifting time | 4.8s±0.2s | |
| 28 | total time | 9.2s±0.5s | |
| 29 | fuel tank capacity | 65L | |
| 30 | function of leveling automatically | yes | |
| Brake system | 31 | service brake | air assist disc brake on 4 wheels |
| 32 | parking brake | flexible shaft operated external drum | |
| Tyre | 33 | type specification | 16/70—20 |
| 34 | front tyre pressure | 0.22Mpa | |
| 35 | rear tyre pressure | 0.18Mpa |
